Pumpkin Seeds Peeling Machine|Melon Seed Dehuller Machine

　　Descriptions

        In daily life or industrial production, we always need to dehull the pumpkin shell. Pumpkin seeds shelling machine can dehull, separate and select pumpkin seeds efficiently.

　　The machine consists of input hopper ,elevator, dehuller, and electroc control cabinet. This pumpkin seeds dehulling machine can be used to process melon seed, muskmelon seed(kharbuja seed), sunflower seed, safflower seed, carthamus seeds, watermelon seed, buckwheat, pine nut (need to change the shelling part) etc.

　　Pumpkin seeds, which are also known as pepitas, are flat, dark green seeds. Some are encased in a yellow-white husk (often called the "shell"). In daily life or industrial production, we always need to dehull the pumpkin shell. Pumpkin seeds shelling machine can dehull, separate and select pumpkin seeds efficiently.

　　Technological Process: Pumpkin Seed(Melon seed, sunflower seed)---Elevating---Dehulling---Shell and Kernel Separating.

　　Machine Structure

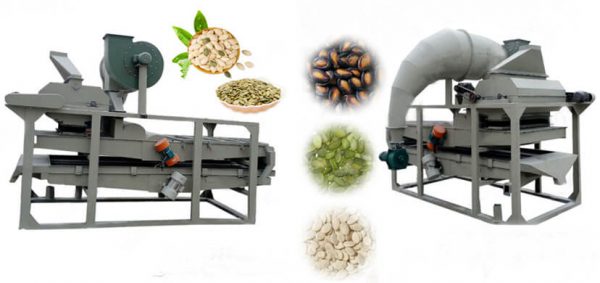

　　This melon seeds sheller equipment includes feeding funnel, raw material elevator, multifunctional cleaning device, bucket elevator, shelling machine (2 sets), checking machine (3 sets), bagging hopper, induced draft system and control cabinet.

　　Advantages and Features:

• Improved-design of dehullers make the dehulling process more efficient
• Screen mesh made from punching works of premium quality cold rolled sheet,durable service. Prevent mesh from blockage due to the bouncing ball design
• Wider&longer screening design make the seed-kernel separation works more efficient.
• Adopt the vibrating and negative-pressure separation works and spiral discharging for shells-discharge to make the shells collecting works easier and meanwhile reduce the dust accumulation greatly during process.
• Vibration source of the equipment adopts vibratory motors design, features easy and quick installation, no foundation works requires

　　Technical parameter of pumpkin shelling machine:

　　Power: 8.19kw(380v)

　　% of whole kerenls:95% min. (kernels that are less than 1/2 whole kernels are brokens)

　　% of inshell in final kernels: 2% maximum

　　Input capacity: 200-300kgs/hour

　　Space occupied: 6.5m×2.9m

　　Height:3.5m

　　Weight:2.5mt
