Lentil Processing Plant means lentil cleaning and peeling line here, which is developed by our factory based on the world's advanced pulses peeling technology. We can design and supply different capacity of single lentil peeling machines and lentil peeling lines according to your demand.

The lentil (Lens culinaris) is an edible pulse. It is a bushy annual plant of the legume family, known for its lens-shaped seeds. There are brown lentil, black lentil, green lentil, red lentil and yellow lentils in the world.

Project Advantages:

　　1.Scientific design, attractive appearance;

　　2.Stable mechanical function, low noise;

　　3.Compact structure, assemble and disassemble easily;

　　4.Unique roller design, outstanding peeling performance;

　　5.Strong negative pressure peeling, neat peeling, low breakage, high accuracy;

　　6.Inlet and outlet can be fine-turned, easy operation;

　　7.Adopt oil sealing rubber skeleton, axis running smoothly and longer bearing life.

Technological process:

1. Cleaning section: it adopts two screening sections, two destoning sections, one magnetic separation section, and removes the big, small and light impurities, pebbles and magnetic material from the beans to ensure the quality of the end products.

2. Color sorting section: it adopts the color sorter to separate the moldy kernels, shriveled beans and foreign species of beans according to the color and luster feature of the beans.

3. Peeling and splitting section: it adopts peeling, splitting, brushing and shunting technology (it can utilize the segregation valve to choose peeling and brushing according to the material character.)

1)Peeling and splitting: it can remove the bean bran, split the bean kernels and separate and collect corn kernels by effective aspiration system;

2)Brushing: it can separate the micro bran and dust which adheres to the material surface.

4. Grading section: it adopts different screens and classify the material into different grades according to the size.

5. Packaging section: storage can reduce the amount of labor used. Measuring can be artificial or electronic.

 Technical Prameter:

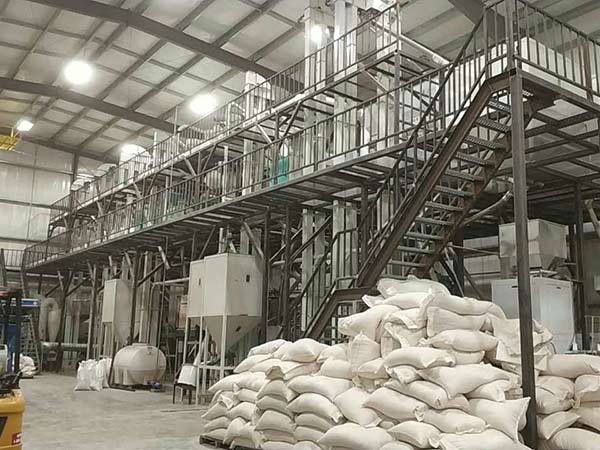

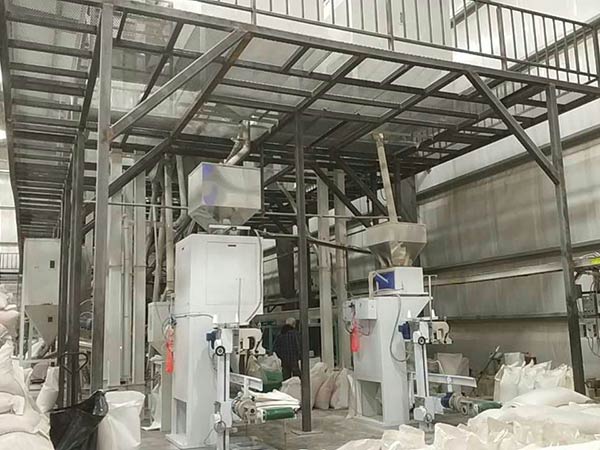

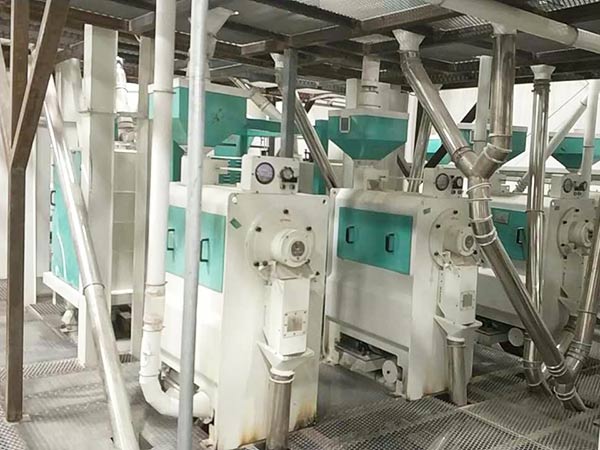

Workshop Processing:

Shown at Exhibition Hal for the Main Machine:

End products:

Peeled Lentil (we design the line according to your needs whether splitting or not):

Peeled and Split Mung Bean:

Peeled and Split Chickpea:

Peeled and Split Peas:

Application Overseas (Part) :

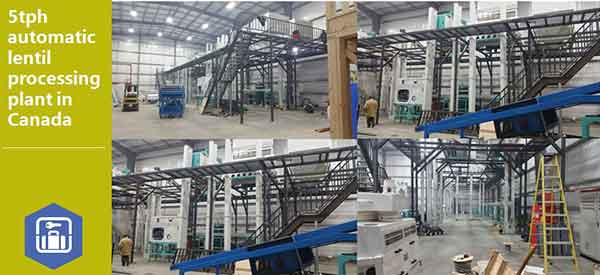

Canada 120T/Day Lentil Peeling Project:

　　 24T/Day Mung Bean Peeling Line in Thailand:

2T/Hour Lentil Peeling Line in Russia:

1T/Hour Lentil Peeling Line in Ethiopia:

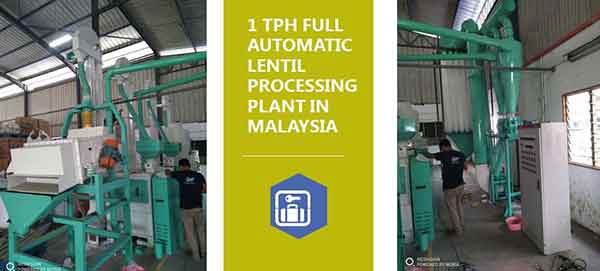

1T/Hour lentil peeling line built in Malaysia:
